N1522W

2024 LEGEND MOAC

American Legend AL18 Super Legend HP / MOAC · Serial AL-381 · White / Red Classic Scheme

FOR SALE — CRESSON, TX · 50F BOURLAND FIELD

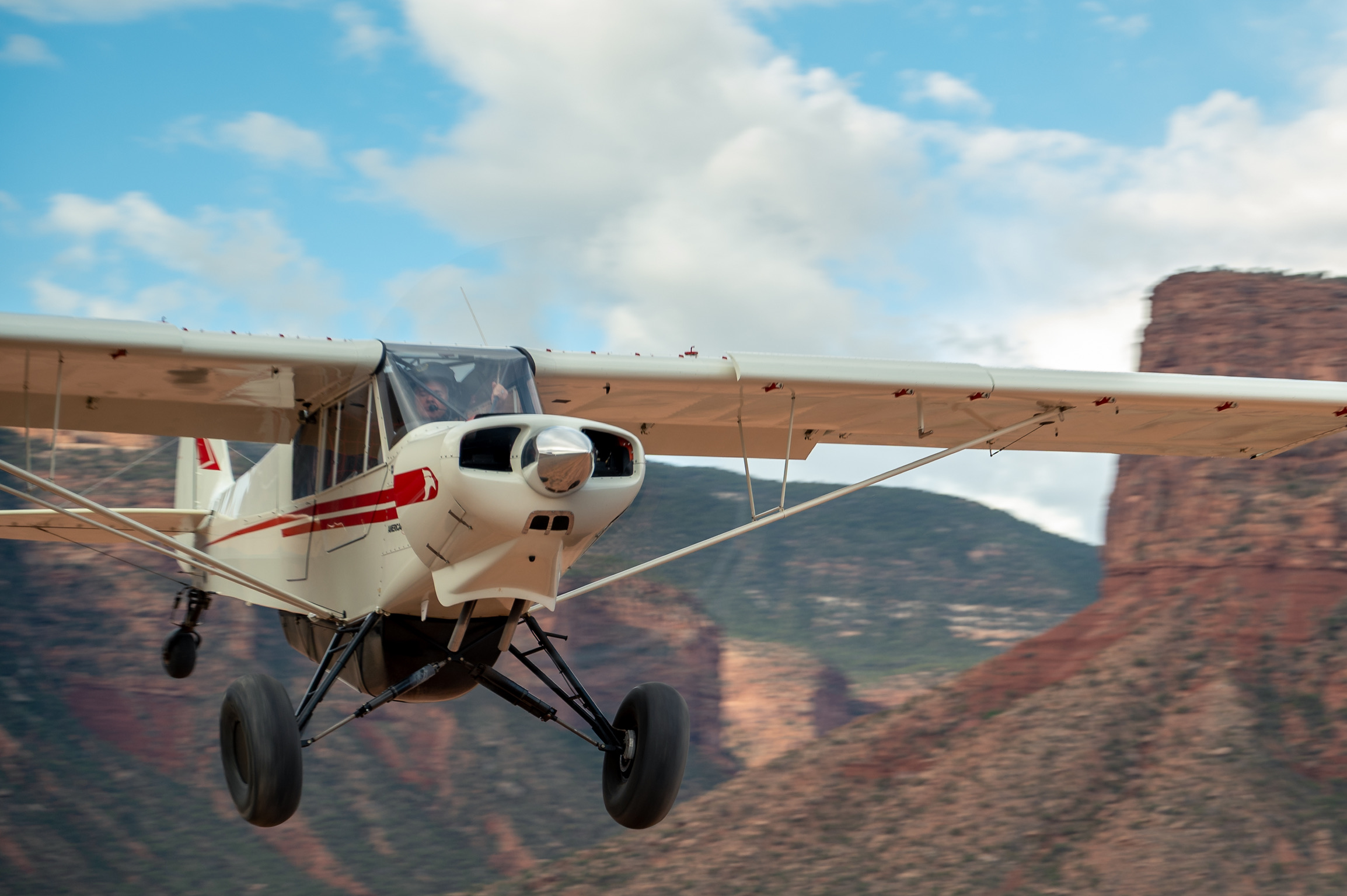

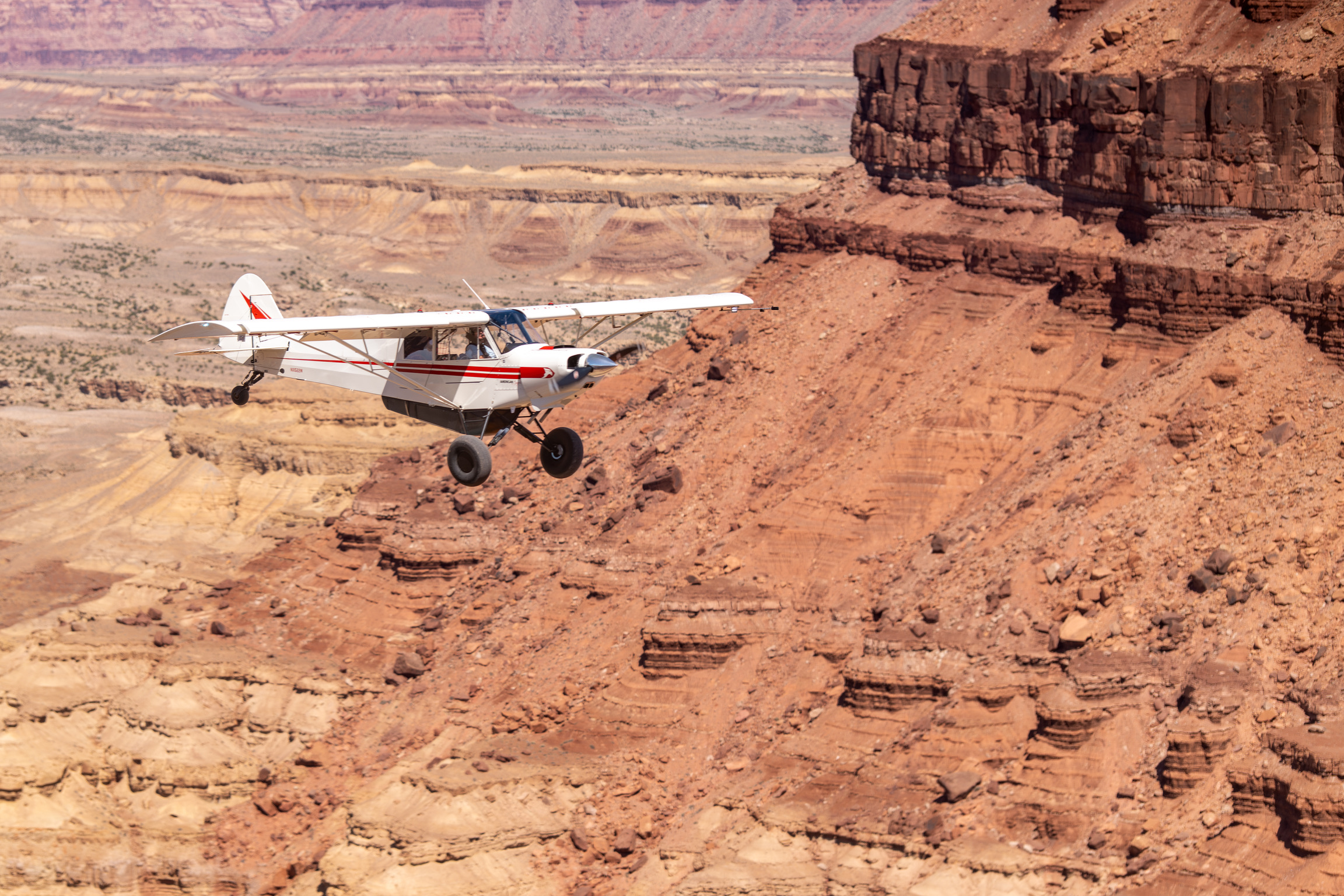

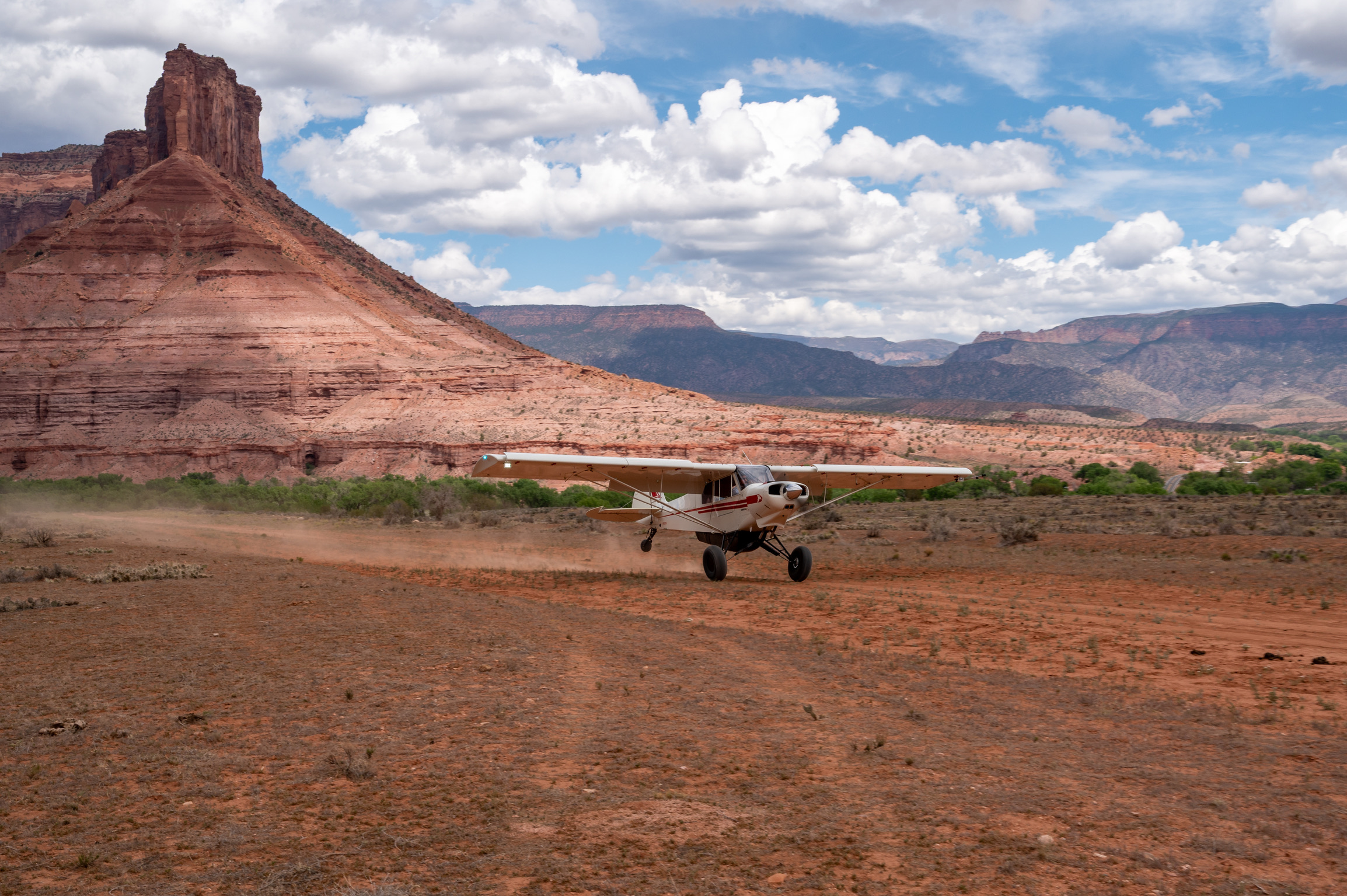

"Gravel bars on the Brazos and Red River. Canyon country in Moab. Monument Valley. Remote OZ strips in the Arkansas Ozarks. This airplane has been there. Low time on a 2024 airframe, fully optioned, and ready to go the day you take delivery."

Fighter Pilot Owned · Serious Inquiries Only

Follow for Flight Footage & Capability Videos

@backcountryfighterpilot on Instagram

Incredible backcountry shots · Flight videos · Expedition operations

$425,000

(850) 376-3905 johnyorkmail@pm.me

See It Fly

N1522W in action

Driveway Shot

Grass Strip

Takeoff & Landing

Drone

Follow @backcountryfighterpilot for more footage

Complete Specifications

Registration & Airtime

Tail Number

N1522W

Serial Number

AL-381

Model Year

2024

Total Hours

262 hrs

Engine Time

232 hrs

Weight & Performance

Empty Weight

1,204 lbs

Useful Load

796 lbs

Max Gross Weight

2,000 lbs

Fuel Tanks

(Upgrade) 49 gallon long range fuel tanks

Engine & Propeller

Engine

Continental Titan IOX340ALD2T8C

Propeller

Hartzell Trailblazer

Landing Gear & Tires

Gear Configuration

Legend Extended HD Landing Gear System (3" Fwd. x 4" Height with cabane vee)

Shock System

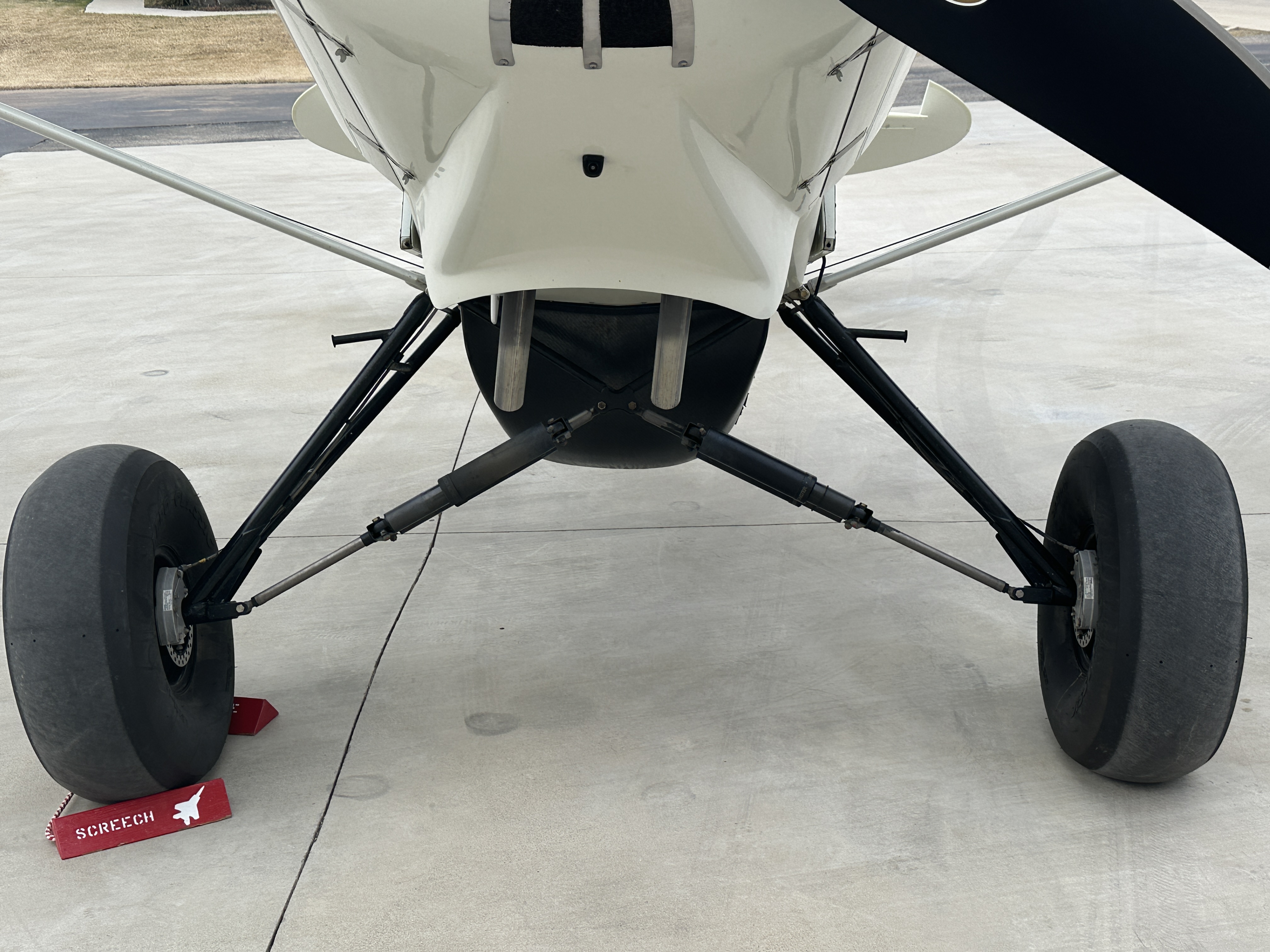

TK1 HD Monster Shock Strut System

Main Tires

29" Desser Tundra Tires

Float Brackets

Sea-Plane Float Bracket Kit

Belly Pod

Belly Pod Provisions

Tailwheel

3200B Baby Bushwheel Tailwheel

Tailwheel Suspension

Acme Aero Stinger

Flight Systems

Lighting

Aero LED Strobe and Position Light System

Landing Lights

Aero LED Wig-Wag Retractable Landing Light System

Brake System

(Upgrade) Toe Brake System

Fueling

(Add) Fueling Step - Installed on both gear axles

Mic Switches

Panel Mounted Mic Switch and Stick Mounted Mic Switch

Throttle Quadrant

Custom Throttle Quadrant

Front Stick Grip

Custom Front Stick Grip

Taxi Camera

Seat Heaters

Seat Heaters (Both Seat Positions)

Vortex Generators

Legend Vortex Generators

Leading Edge

Legend Leading Edge Slat System

Gap Seals

Gap seals on horizontal and vertical stabilizer

Condition & Documentation

Airframe Condition

Excellent

Paint & Interior

Like New

Annual Inspection

Current - No damage history

Logbooks

Complete airframe, engine & prop

ELT Battery

Expires November 2029

Access Features

MOAC Access Hatch Door - Order with lower fuselage below

Baggage Area

Lower Extended Baggage Area with RH Side Access Door

Note

Cargo Pod not included

Premium Features & Capabilities

                Avionics Suite - Garmin G3X Touch
                Garmin 2-Axis Autopilot System with GMC 507 Control Panel
GDU 460 G3X Touchscreen
GTX 45R
GPS 20A WAAS GPS + GA 35 WAAS antenna
GTR 20 Comm Radio
GEA 24 Engine Monitor (Full engine analyzer)
GSU 25C ADAHRS + GMU II Magnetometer
ELT 345



XP Performance Package

Built for altitude and distance

Square wing with performance wing tips
Extended flaps and ailerons
49-gallon usable fuel system
Large performance rudder

MOAC Package

Mother of All Cubs - Maximum utility and access

Extended baggage with side access door
Rear turtle deck hatch door
RH main baggage access door
Rear seat configuration (no third seat)

Backcountry Ready

Float brackets and expedition equipped

Legend float plane brackets installed
Belly pod tabs & provisions
3x3 gear + TK Monster struts
29" Desser Tundra tires on 10" Grove wheels

Expedition Interior

Hardworking gear compartment

MOLLE panels for gear organization
BedRug brand cargo floor liner
LED baggage lighting
USB power front & turtle deck
Legend Kydex interior + custom cloth cushions

                Connected Everywhere
                Starlink - Satellite internet installed
LEMO Plugs - Front and rear seats
USB Power - Panel and turtle deck
LED Lighting - Rear baggage compartment
MOLLE System - Modular gear organization



Rare Capability

Two-Axis Autopilot in a Backcountry Cub

GMC 507 with roll and pitch servos
Uncommon in this aircraft class
Full Garmin G3X avionics in a dirt-field airframe
Long mountain legs just got easier

                Every Option Checked
                Dual oil cooler system
Float plane brackets installed
Belly pod tabs & provisions
Baby Bushwheel suspension
Generator kit for electrical power



About the Seller

Retired Military Pilot · F-22 Raptor · F-15 Eagle

"I've been fortunate to fly some incredible aircraft. This one holds its own. Built right, maintained right, and flown to places that reminded me why I got into aviation in the first place.

American Legend Aircraft builds these in Sulphur Springs, Texas — factory EAB construction, which means they build it, they certify it, and the quality control is theirs from the ground up. Not a kit. Not a garage project.

If you're the right buyer, you'll know it when you see it."

Contact Information

Demo flights available for qualified buyers at 50F Bourland Field, Cresson TX.

Phone / Text

(850) 376-3905

Call or text

Email

johnyorkmail@pm.me

Include your pilot background

Location

50F Bourland Field

Cresson, TX · Always hangared

John York

Retired Military Pilot · F-22 / F-15 · Instagram: @backcountryfighterpilot

Price

$425,000

Pre-buy welcome. Logbooks clean.

Aircraft Status

EAB Experimental · N1522W

Serial AL-381 · 2024 American Legend AL18 Super Legend HP / MOAC

Instagram

@backcountryfighterpilot

Flight footage · Backcountry ops
